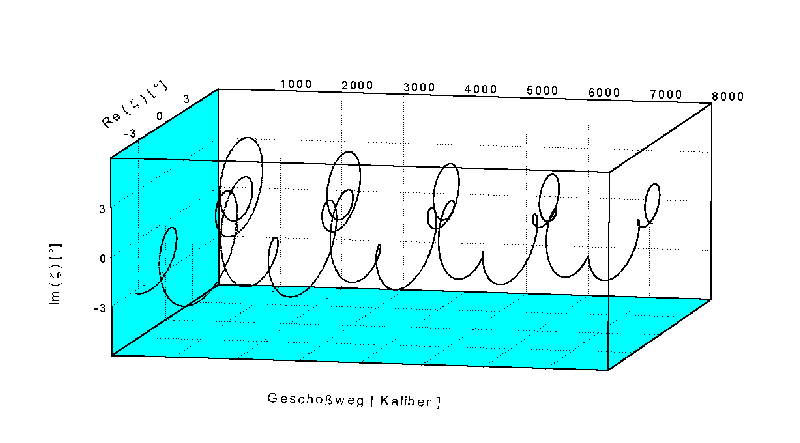

Yawing motion of M74 bullet, cal. 5.45 x 39

Yawing motion of M74 bullet

Bullet   MuzzleValues   Yaw Angle
mass 3.44 g velocity 917 m/s maximum < 4°
diameter 5.64 mm static stability factor 1.56 dynamically stable yes
